Cone Crusher
The MAX Plant range of bare cone crushers are high performance machines suitable for use in secondary or tertiary applications where reliability and simplicity are what is required. Running a proven bronze bush system that gives long life coupled with low operating costs and the versatility for modular and mobile installation. Installed in applications globally the MAX Plant CS range is your ideal cone partner on your next project.

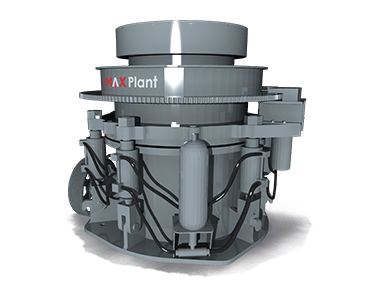

CS200
Technical Specification
METRIC
IMPERIAL
METRIC
| Max Feed Size | 185mm |
| Min Feed Size | 19mm |
| Power | 110 – 150 KW |
| Weight | 12T |
| Capacity | 180 – 310TPH |
| Cone Setting | 22mm – 38mm |
IMPERIAL
| Max Feed Size | 7.3” |
| Min Feed Size | 0.8” |
| Power | 147.5 – 201.5Hp |
| Weight | 26,456LBS |
| Capacity | 180 – 310TPH |
| Cone Setting | 0.9” – 1.5” |

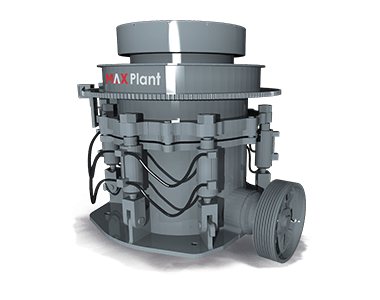

CS300
Technical Specification
METRIC
IMPERIAL
METRIC
| Max Feed Size | 210mm |
| Min Feed Size | 22mm |
| Power | 180 – 225 KW |
| Weight | 18.7T |
| Capacity | 210 – 430TPH |
| Cone Setting | 22mm – 51mm |
IMPERIAL
| Max Feed Size | 8.3” |
| Min Feed Size | 0.9” |
| Power | 241.4 – 301.7Hp |
| Weight | 41,226LBS |
| Capacity | 210 – 430TPH |
| Cone Setting | 0.9” – 2” |

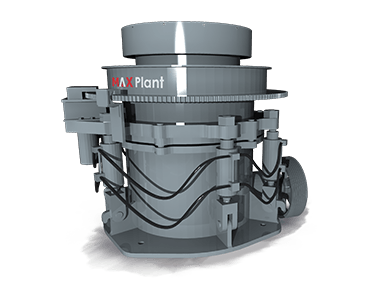

CS400
Technical Specification
METRIC
IMPERIAL
METRIC
| Max Feed Size | 290mm |
| Min Feed Size | 25mm |
| Power | 220 – 300 KW |
| Weight | 28.4T |
| Capacity | 295 – 550TPH |
| Cone Setting | 25mm – 51mm |
IMPERIAL
| Max Feed Size | 11.4” |
| Min Feed Size | 1” |
| Power | 295 – 402.3Hp |
| Weight | 62,611LBS |
| Capacity | 295 – 550TPH |
| Cone Setting | 1” – 2” |
